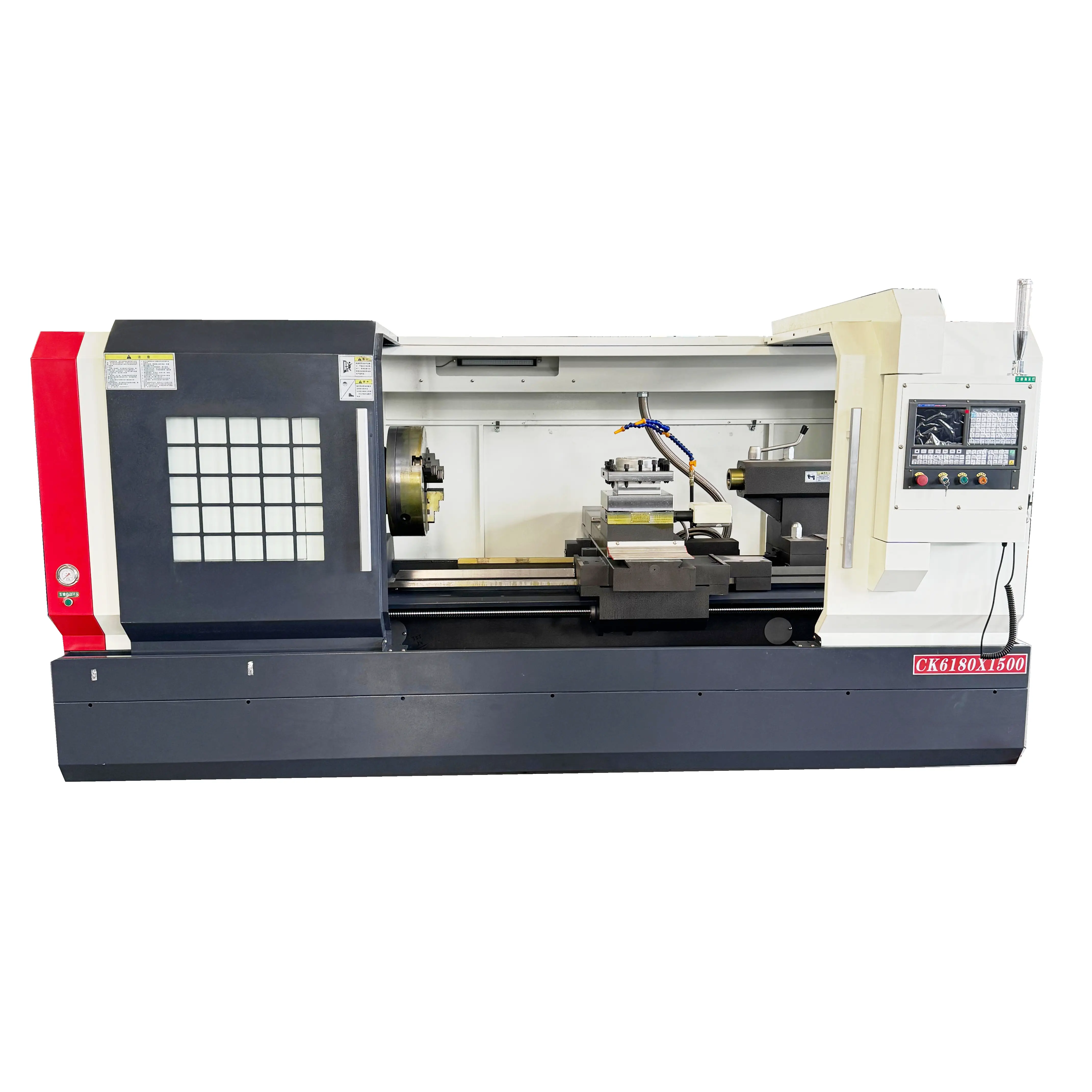

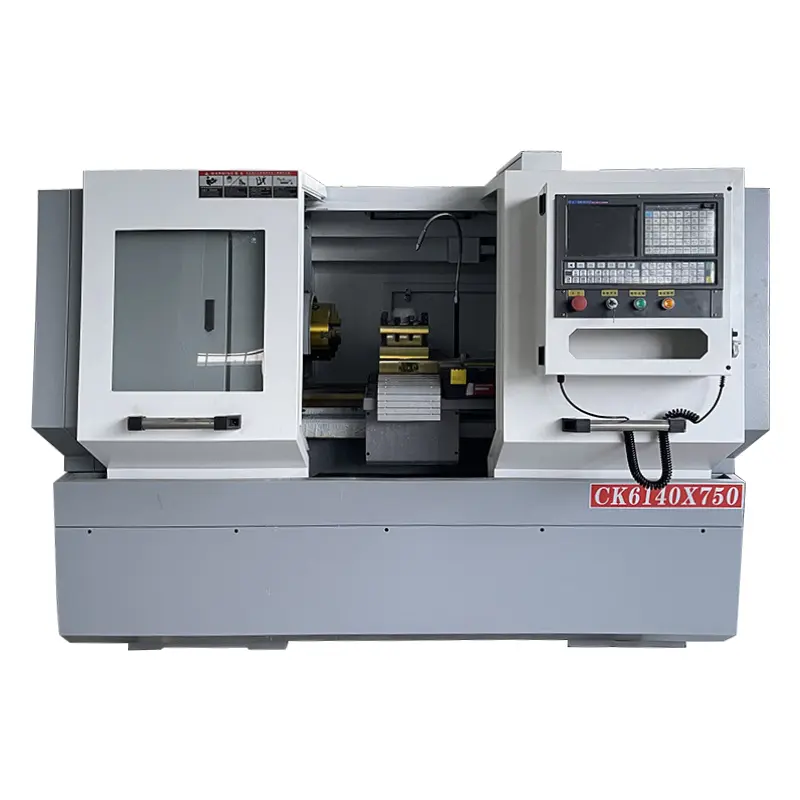

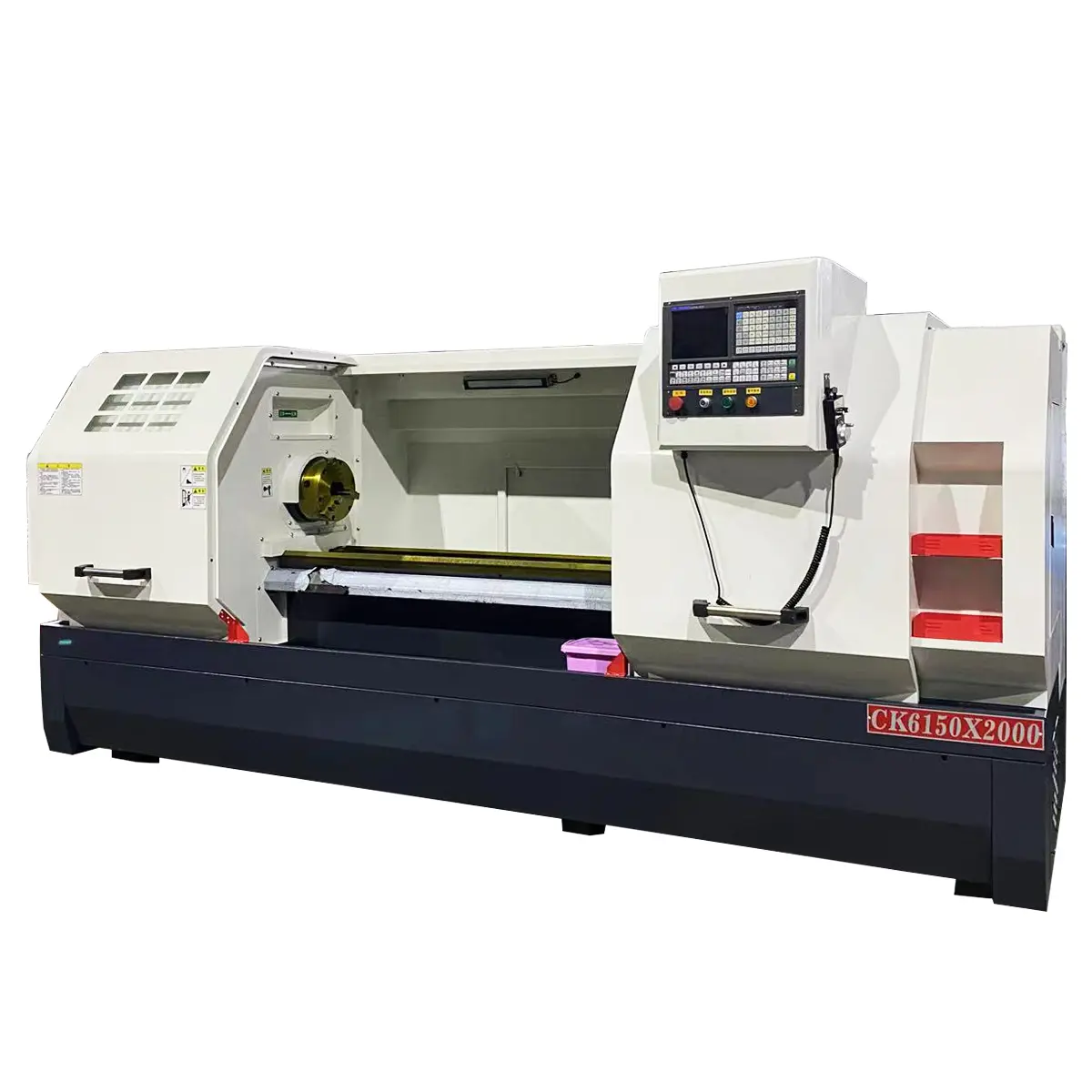

This series of heavy duty CNC lathes CK6140/CK6150/CK6180 have the characteristics of high precision, high power, high rigidity, etc. Its main components and structures are optimized and designed. It is the preferred equipment for processing shafts, discs, sleeves, special-shaped surfaces and screw workpiece.

Send Inquiry

Product Description

Products Video

Technology Parameter

Parameter SPECIFICATIONS Units CK6140 CK6150 CK6180
Machining Capacity Maximum turning diameter over bed mm 400 500 800
Machining Capacity Maximum turning diameter over turret mm 200 250 480
Machining Capacity Maximum workpiece length mm 750/1000/1500/2000 850/1000/1500/2000 1000/1500/2000/3000
Power System Spindle Motor KW 5.5 7.5 11
Precision Repeat Positioning accuracy mm 0.01 0.01 0.01

Appearance and Features

  • The machine head box and the bed, tailstock, and pallet joint surfaces are manually scraped and polished, ensuring stability and accuracy.
  • Adopts high-strength cast iron and hard guide rails for superior wear resistance.
  • Spindle utilizes high-performance bearings and precision-ground gears to reduce noise and increase hardness.
  • Z-axis and X-axis ball screws adopt a tensile structure, improving the accuracy of both inner and outer workpiece dimensions.

Configuration Introduction

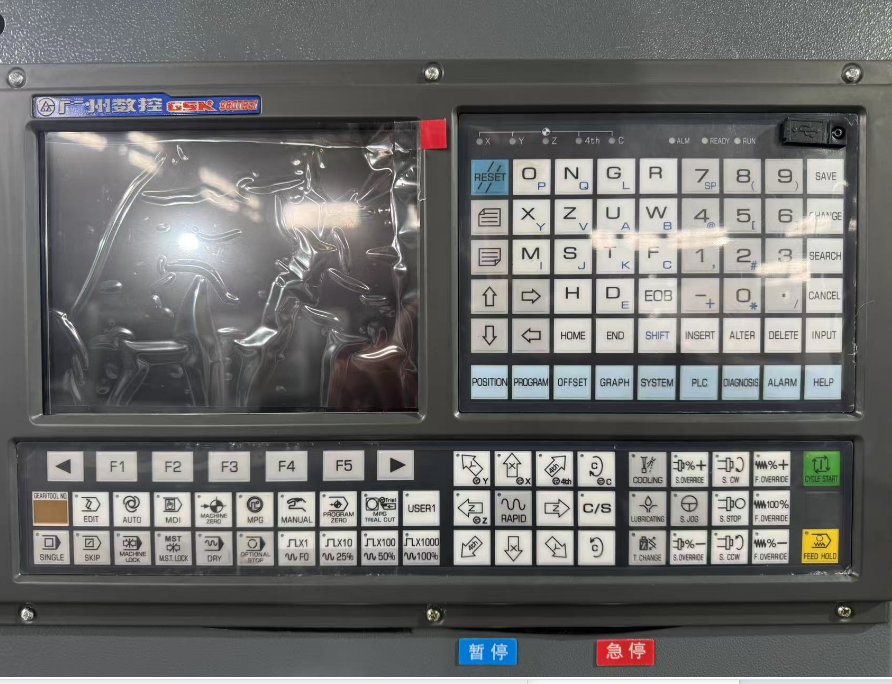

CNC Control System

1. CNC Control System: High-performance bus system with advanced control algorithms for high-speed and high-precision processing.

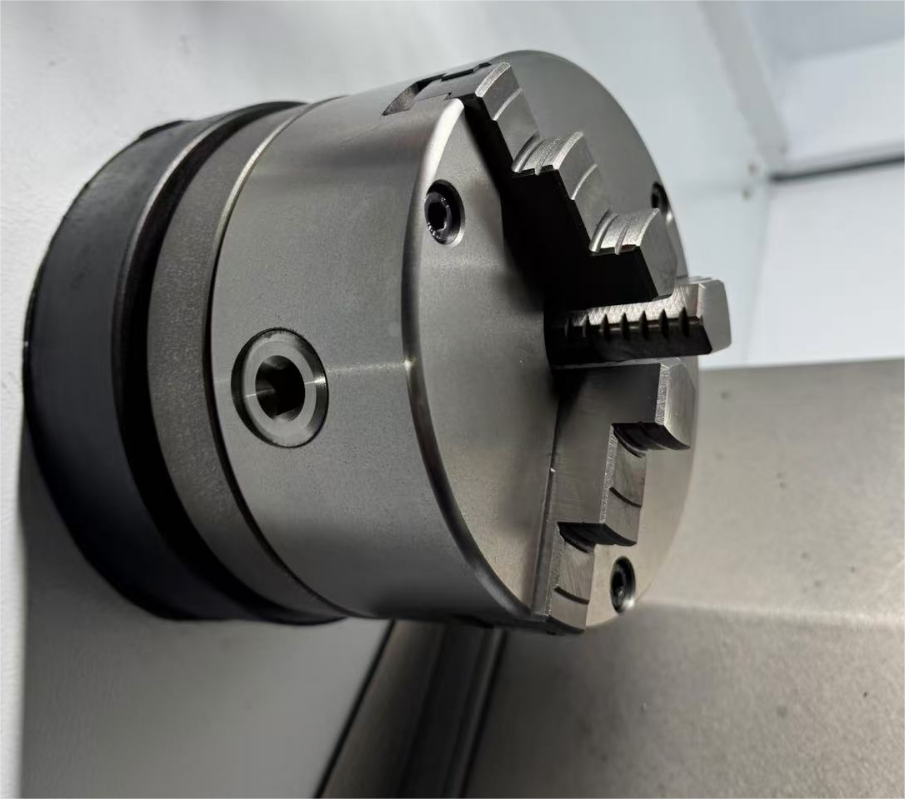

Manual Chuck

2. Manual Chuck and Tailstock: Offers high flexibility, large clamping force, and easy operation for various workpiece sizes.

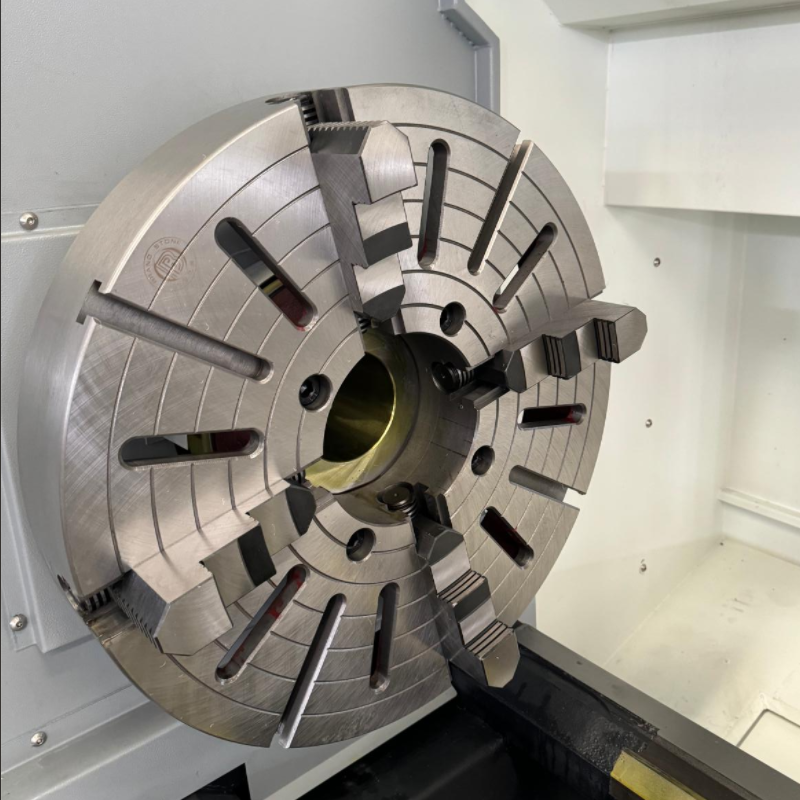

Four Claw Manual Chuck

CK6180 model equipped with a four-claw manual chuck for robust clamping.

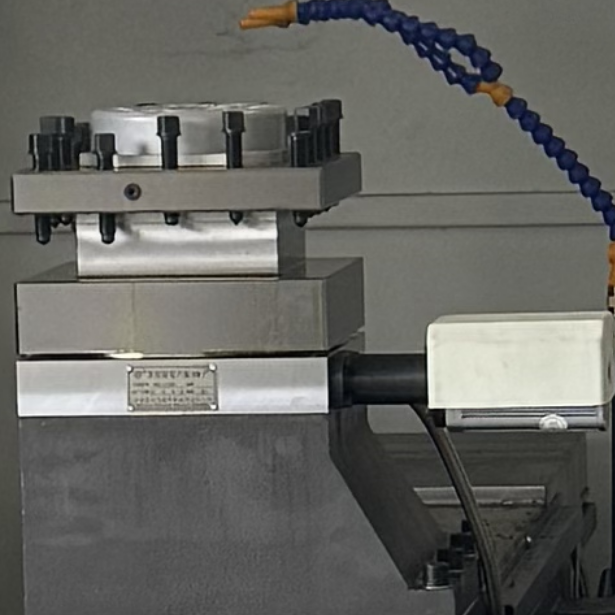

Electric Tool Post

3. 4-Station Electric Tool Post: Enables automatic and fast tool changes to maximize production efficiency.

Frequently Asked Questions (FAQ)

1. What materials can this CNC lathe process?
This series of CNC lathes is primarily designed for metal processing, including steel, cast iron, and various non-ferrous metals.
2. How is the machining accuracy guaranteed?
The machine utilizes manually scraped joint surfaces, high-strength cast iron, and precision-ground ball screws to ensure high positioning and repeat accuracy.
3. Does the CNC system support complex programming?
Yes, the system supports multi-axis linkage control, macro programming, graphic simulation, and various compensation functions for complex part manufacturing.
4. Can the tailstock be adjusted?
Yes, the manual tailstock is flexible; it can be moved along the bed and the sleeve position can be adjusted to accommodate workpieces of different lengths.
5. Is this machine suitable for heavy-duty cutting?
Yes, the machine uses high-strength cast iron and robust spindle bearings, making it suitable for stable and heavy-duty cutting operations.
