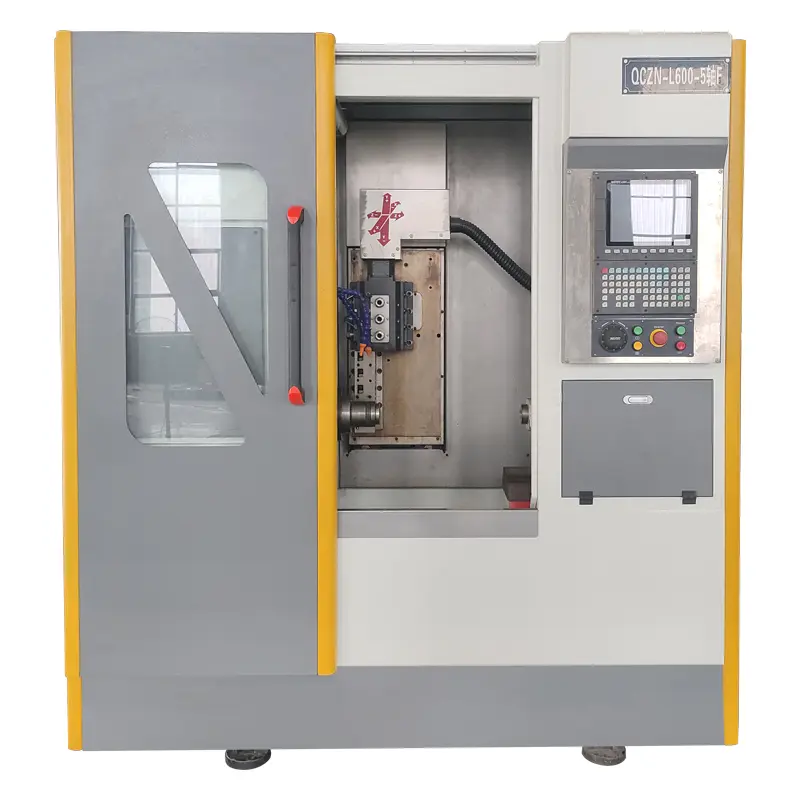

| Capacity | |
| Maximum turning diameter over the bed | 360mm |
| Maximum turning diameter over the turret | 180mm |
| Maximum machining diameter | 360mm |
| Maximum processing length | 400mm |
| Taper of the spindle front hole | 44° |
| The height from Tool post to spindle center | 400mm |
| The stroke of the axis | |
| X axis stroke | 680mm |
| Y axis stroke | 320mm |
| Z axis stroke | 220mm |
| Spindle | |
| Spindle speed | 1-6000RPM |
| The spindle 360° indexing error | 0.018° |
| Spindle nose | A2-5 |
| Hole diameter | 46mm |
| Spindle power | 7.5Kw |
| Precision | |
| Machining precision | <0.01mm |
| Repeating positing precision | <0.005mm |
| Knife rest | |
| Tool post form | 6 station bus servo turret |
| Height of rectangular shank | 20mm |
| Diameter of boring bar handle | 20mm |
| Motor & Volume | |
| Spindle motor | 7.5kW |
| Floor area | 1750 x 1400 x 1850mm |
| Weight | 1800kg |
1. CNC Control System

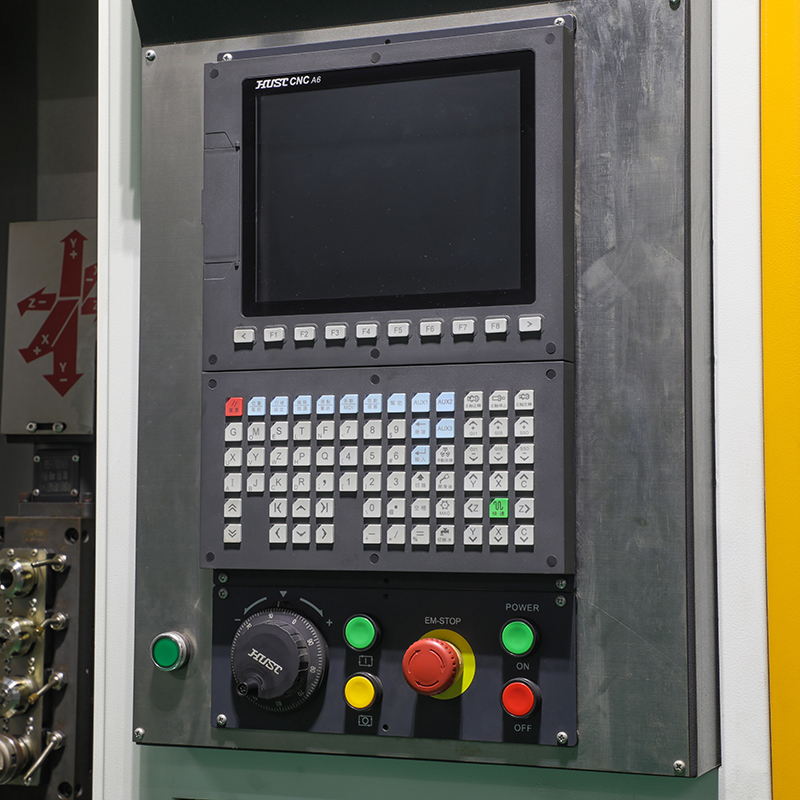

The machine adopts Syntec bus control system which can achieve highly sophisticated task of metal processing. It features a user-friendly interface that enables operators to input and manage complex programming sequences. With real-time monitoring and adaptive control capabilities, the system ensures high-quality cuts and exceptional consistency.
2. Hydraulic Clamping with Collet and Tailstock

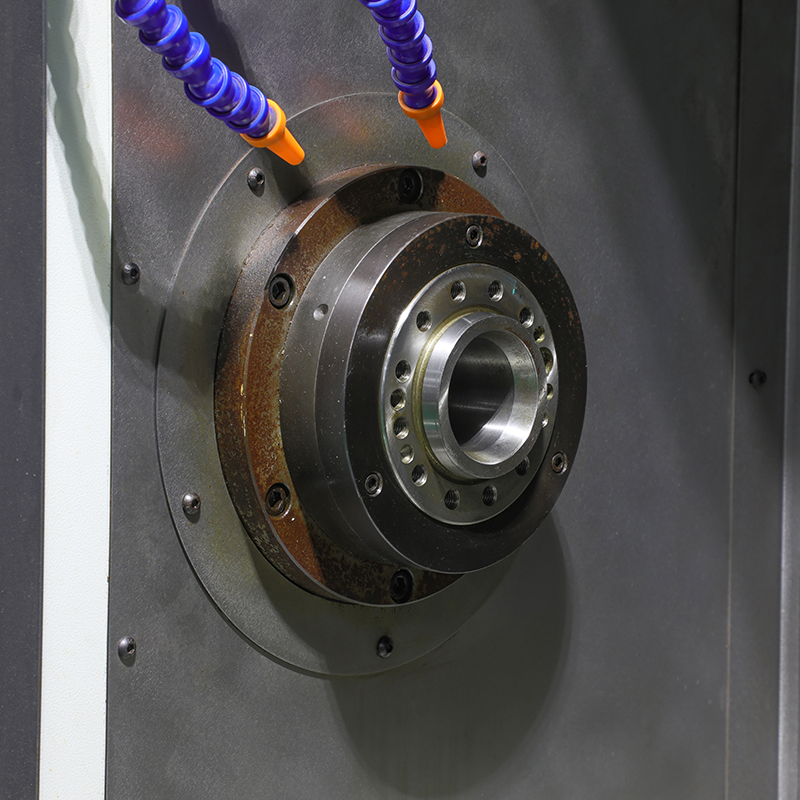

Hydraulic clamping is a state-of-the-art mechanism used for securing workpieces. The system employs a precision-made collet activated hydraulically for a strong hold. The tailstock is also hydraulically controlled, adjustable to accommodate different workpiece lengths, ensuring stability and accuracy during the cutting process.

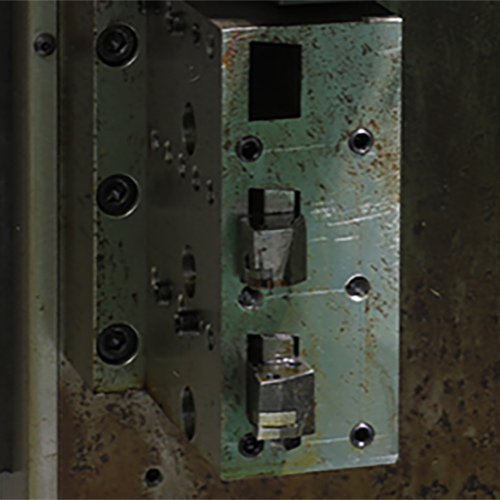

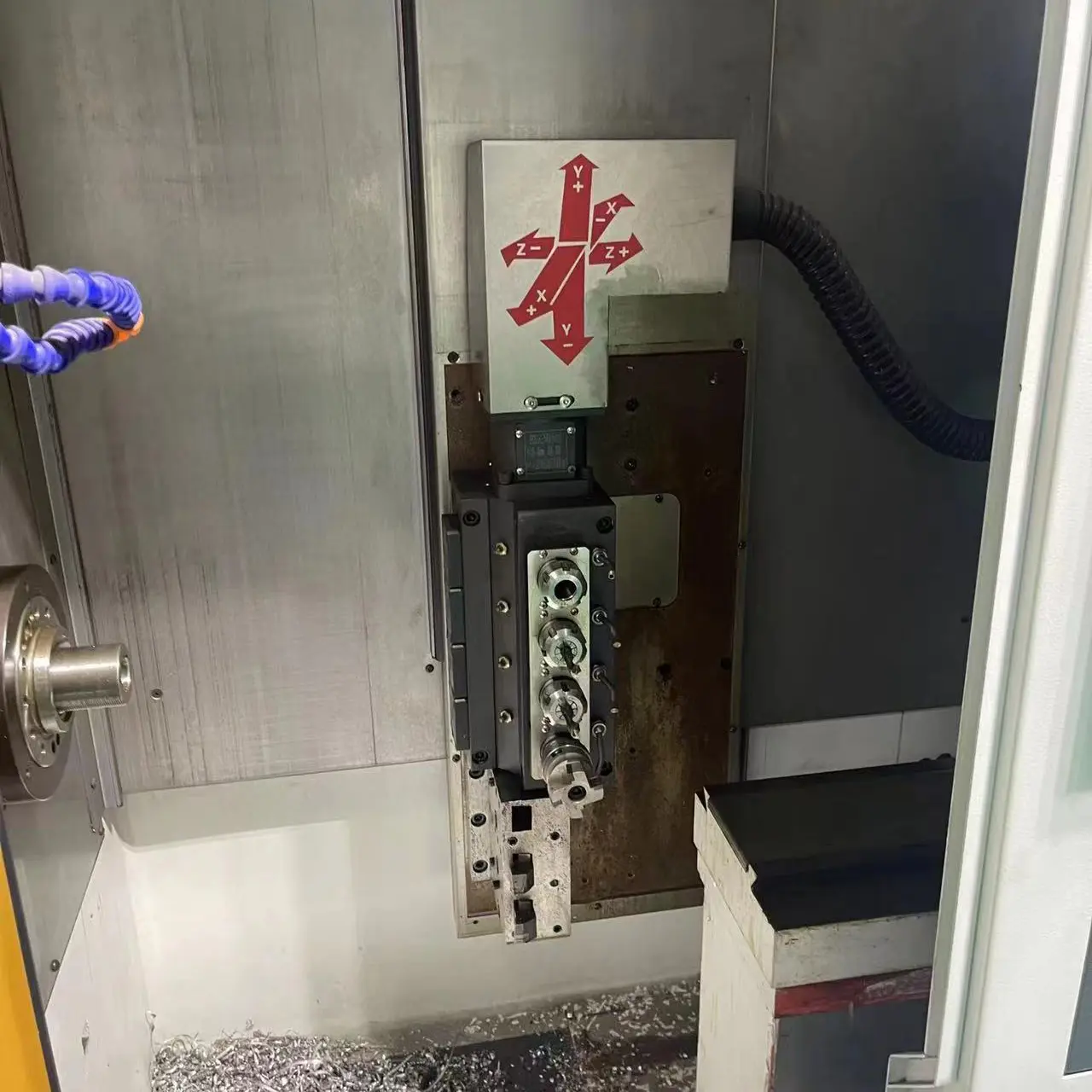

3. 4+4 Y Axis Power Head & 6 Station Servo Tool Turret

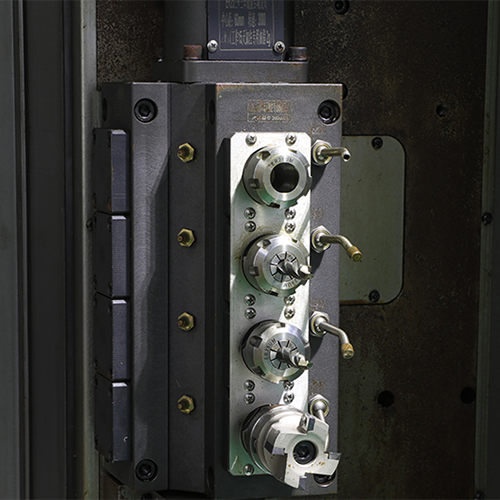

The 4+4 Y axis power head enhances versatility, consisting of two independent Y-axis slides with eight cutting stations for both radial and axial milling. The 6-station servo tool turret increases efficiency, with each station capable of holding a different tool.
4. Screw Lead and Linear Guide Rail

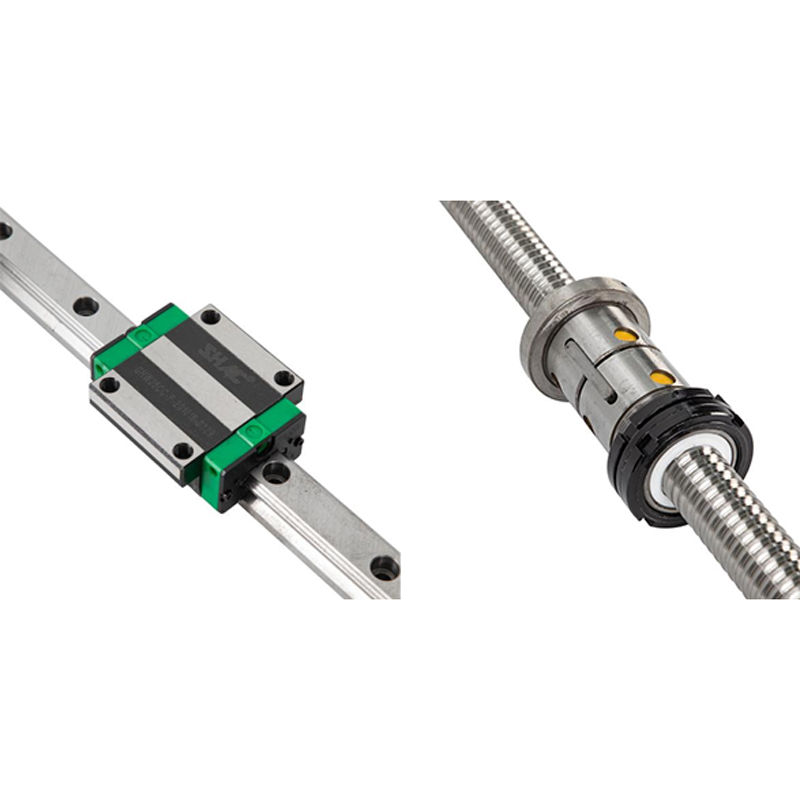

The linear guide rail system provides stable and precise support for moving parts. Designed to minimize friction and resist wear, these guides are equipped with recirculating ball bearings to maintain tight tolerances and deliver superior surface finishes even under heavy loads.
5. Electric Spindle

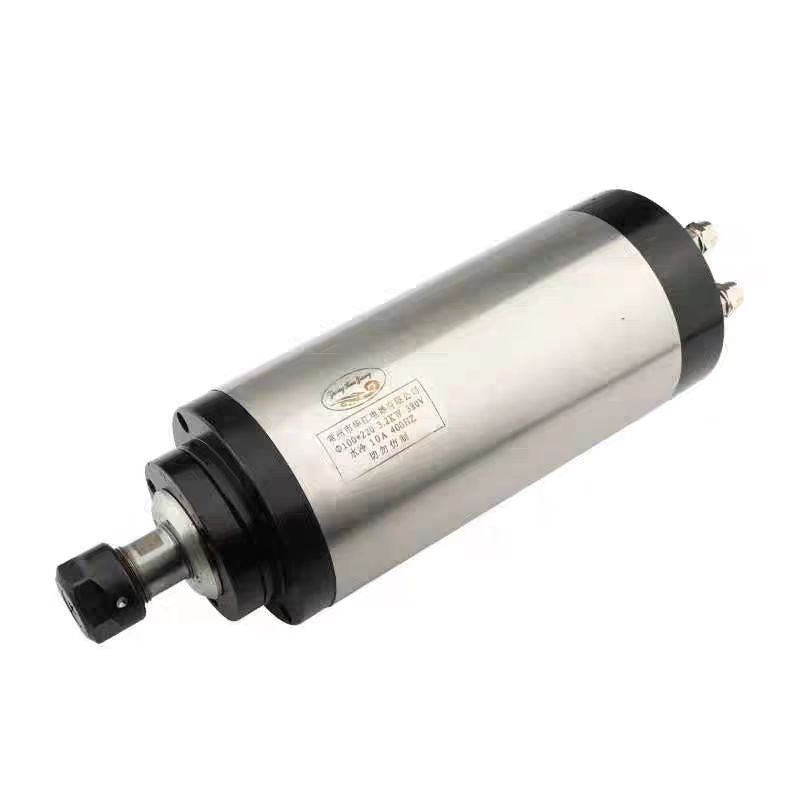

The electric spindle is the heart of the machine's cutting capability, providing the power and precision necessary for various operations. It features a high-speed motor mounted directly on the tool, designed for high performance, speed, and consistency.
