| Parameter | SPECIFICATIONS | Units | Value | ||
| Machining Capacity | Maximum turning diameter over bed | mm | 450 | ||
| Machining Capacity | Maximum turning diameter over turret | mm | 200 | ||
| Machining Capacity | Maximum machining length | mm | 300 | ||
| Machining Capacity | Maximum machining bar diameter | mm | 45 | ||
| Power System | Spindle Motor | kw | 5.5 | ||
| Power System | X/Z drive motor | kw | 1.7kw(GSK) | ||
| Precision | Repeat Positioning accuracy | mm | <0.005 | ||
| Other | Machine weight | kg | 2500 | ||
| Other | Machine Size | mm | 2200X1600X1900 | ||

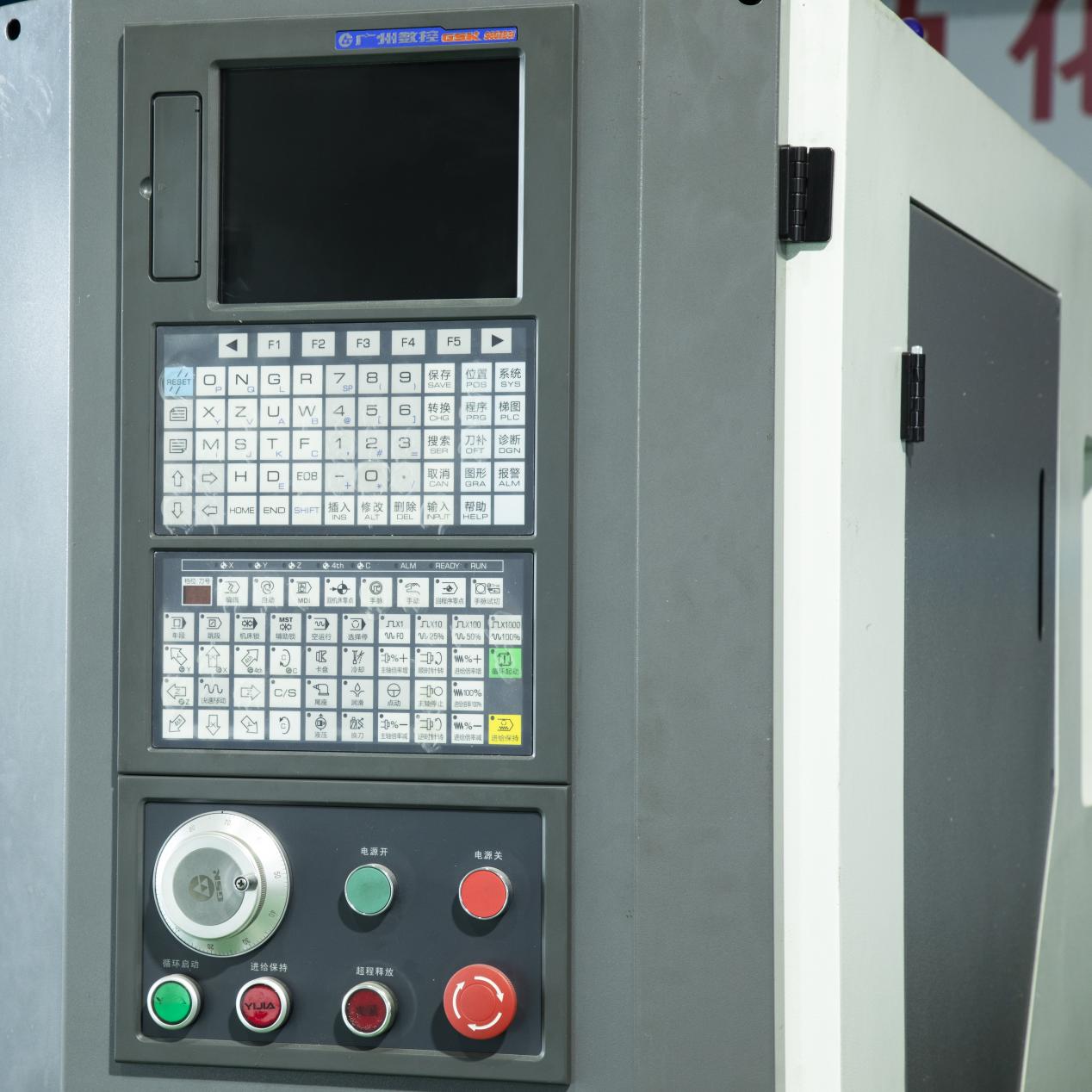

The machine is equipped with a high-performance GSK CNC control system, supporting multi-axis interpolation, high-speed processing, and user-friendly conversational programming. Its intuitive touchscreen interface allows for easy operation, real-time monitoring, and quick parameter adjustments, ensuring high accuracy and productivity.
Incorporates a hydraulic clamping system for secure and efficient workpiece holding. The collet chuck provides strong gripping force and excellent concentricity, ensuring minimal runout during high-speed operations. Adjustable pressure settings accommodate various materials.

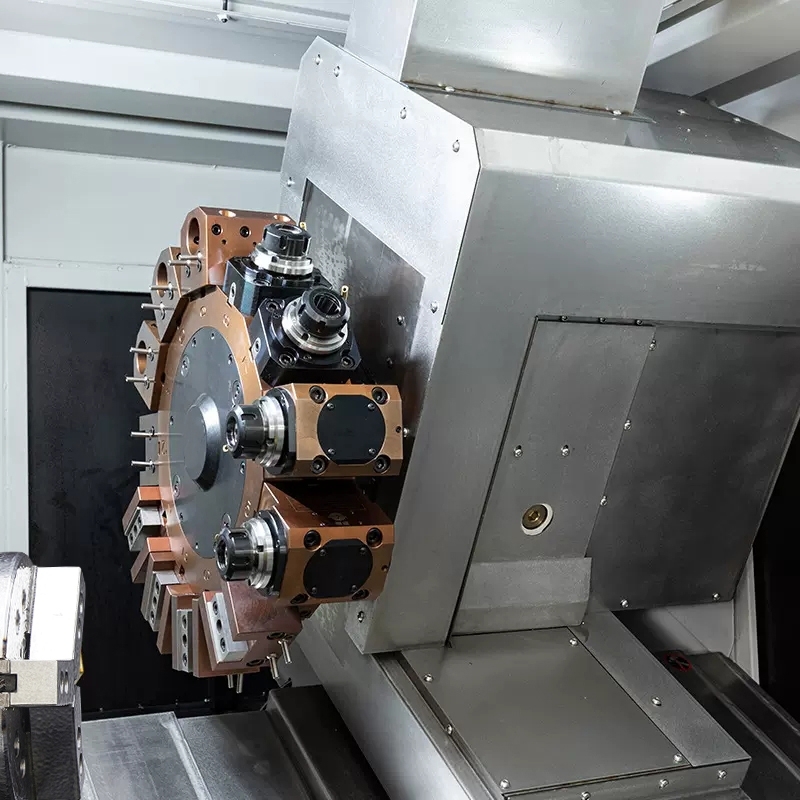

Integrated 12-station power tool turret for automatic tool changes, significantly reducing downtime. Optionally equipped with a Y-axis, it expands machining capabilities for off-center operations, contouring, and complex milling tasks with high repeatability.
Utilizes precision ball screw leads for accurate motion transmission in X, Y, and Z axes, minimizing backlash. Combined with high-rigidity linear guide rails, this setup provides excellent stability, reduced friction, and long-term wear resistance, ensuring tight tolerances of ±0.005mm or better.

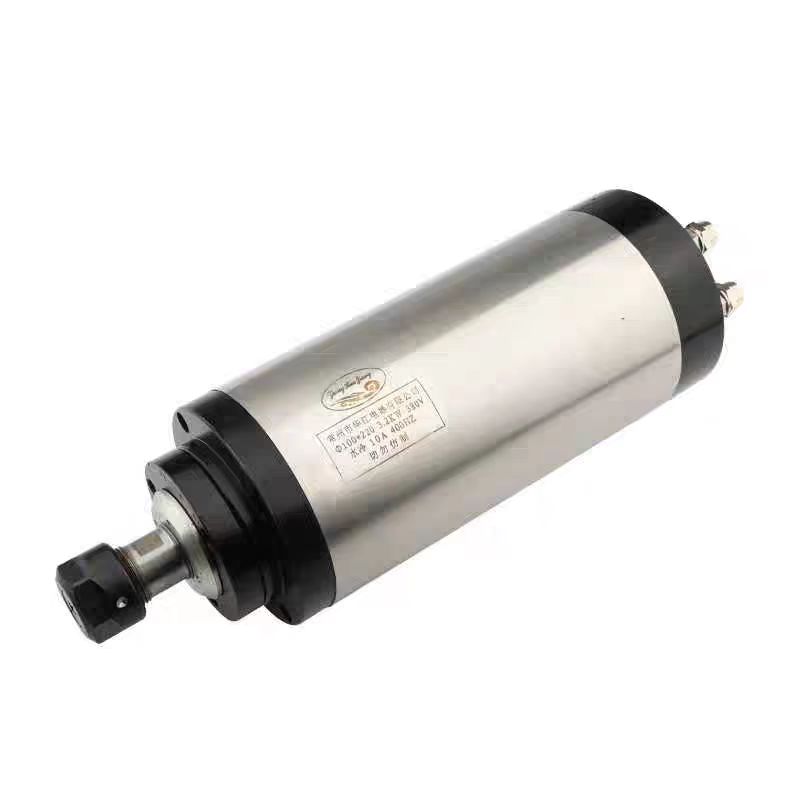

Features a high-performance spindle driven by a servo motor for precise speed control and high torque. Unlike traditional belt drives, this provides direct power transmission, reduced energy loss, and superior thermal stability during prolonged, high-speed finishing operations.
Includes a separated electrical cabinet to isolate sensitive control components from heat, dust, and vibrations. This design enhances reliability, extends the lifespan of electrical parts, and allows for easier maintenance and troubleshooting of wiring and servo drives.
This machine is equipped with the high-performance GSK CNC control system, known for its reliability and advanced multi-axis interpolation capabilities.
The machine offers excellent precision, with repeat positioning accuracy, machining accuracy, and spindle beat all maintained at <0.005mm.
Yes, the 12-station power tool turret is optionally equipped with a Y-axis, allowing for complex off-center operations and advanced milling tasks.
The spindle uses a high-performance servo motor for direct power transmission, which offers better speed control, higher torque, and superior energy efficiency compared to traditional belt drives.
The separated cabinet design isolates sensitive electronic components from heat, dust, and vibrations generated by the machine, enhancing overall system reliability and longevity.
