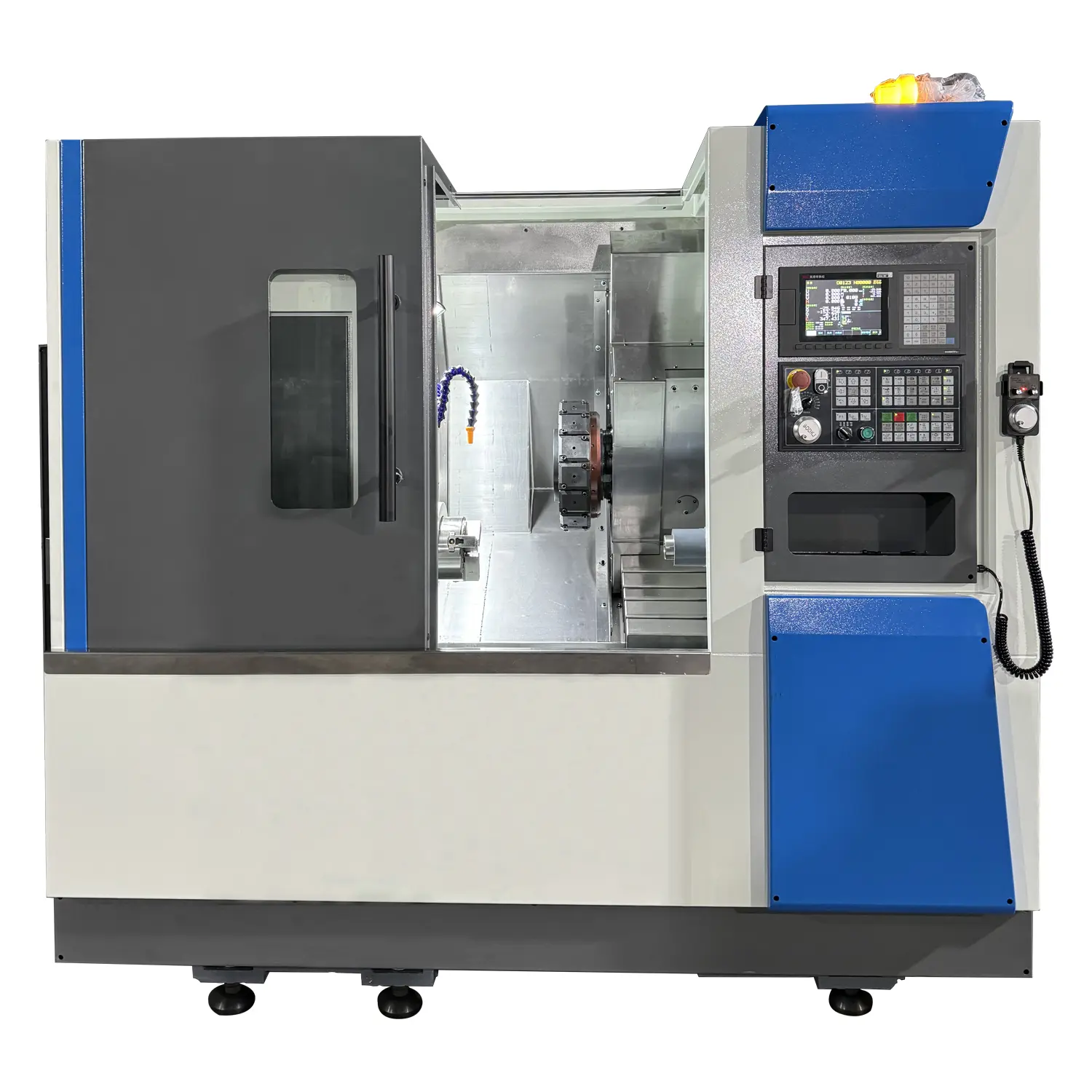

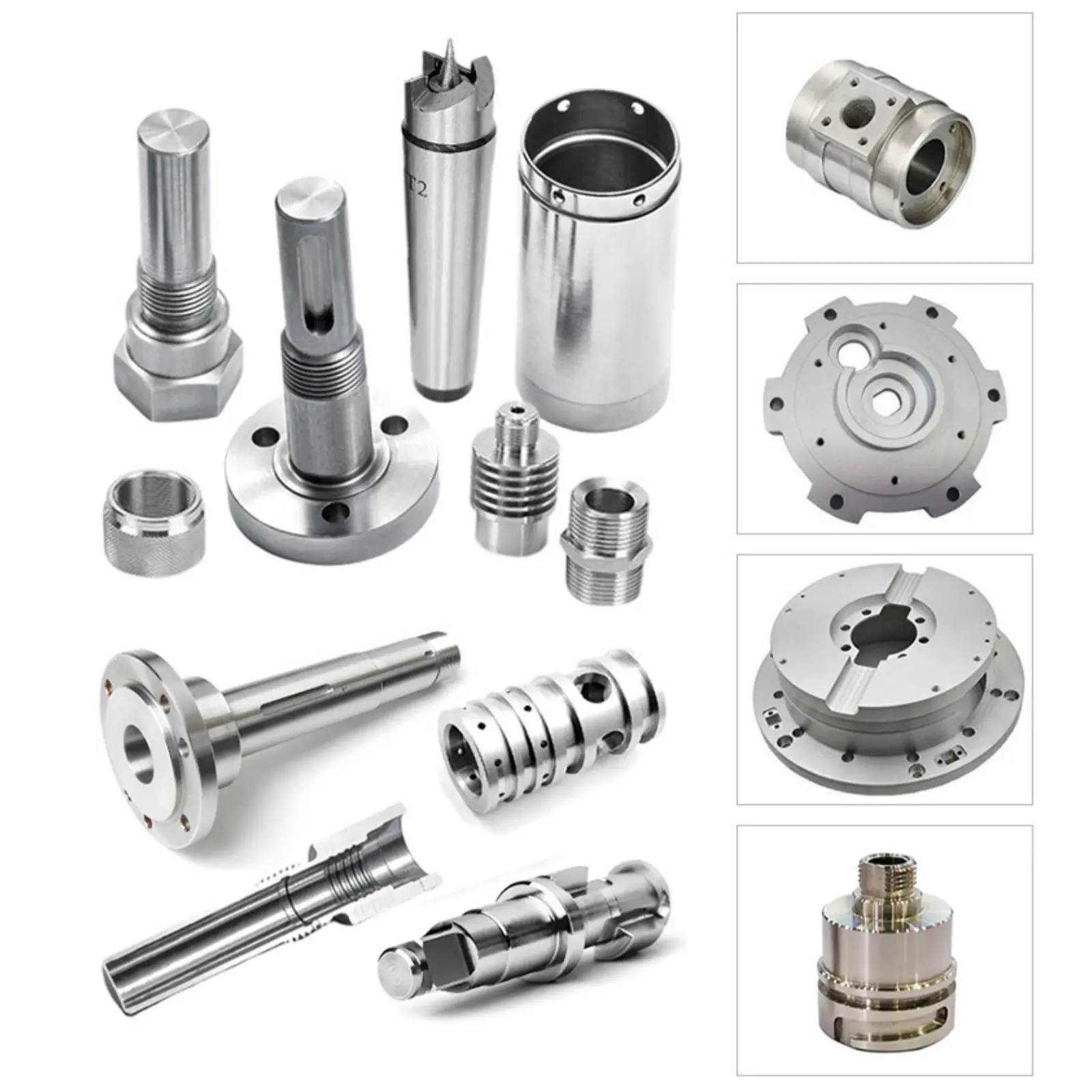

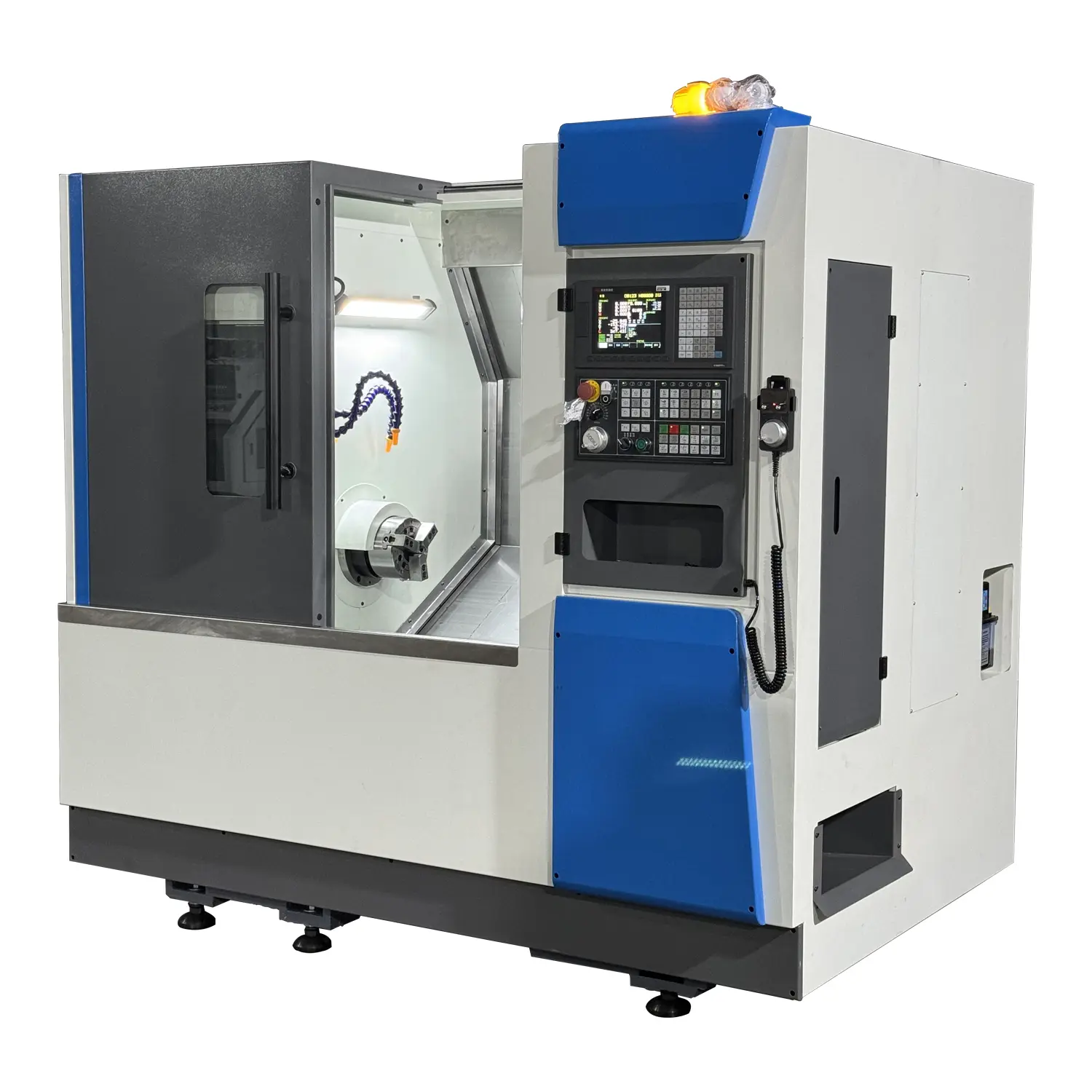

| Parameter | SPECIFICATIONS | Units | Value |
| Machining Capacity | Maximum turning diameter over bed | mm | 450 |
| Machining Capacity | Maximum turning diameter over turret | mm | 300 |
| Machining Capacity | Maximum machining length | mm | 350/550 |
| Machining Capacity | Maximum machining bar diameter | mm | 45 |
| Machining Capacity | Diameter of spindle bore | mm | 56 |
| Machining Capacity | Maximum stroke of X/Z/Y | mm | 220/350(550)/100 |
| Machining Capacity | Spindle maximum spindle speed | r/min | 4000 |
| Power System | Spindle Motor | kw | 7.5 |
| Power System | Cutting fluid pump motor | kw | 0.9 |
| Power System | Hydraulic pump motor | kw | 0.75 |
| Power System | X/Z drive motor | kw | 1.7kw |
| Tool Post | Height of rectangular tool shank section | mm | 20 |
| Precision | Repeat Positioning accuracy | mm | <0.005 |
| Precision | Machining accuracy | mm | <0.005 |
| Precision | Spindle beat | mm | <0.005 |
| Tailstock | Movement | mm | 350 |
| Tailstock | Diameter of sleeve | mm | 31.2 |
| Tailstock | Taper of sleeve | / | MT4 |
| Tailstock | Sleeve movement | mm | 100 |
| Feed Velocity | Fast Feed velocity | m/min | X:20/Z:20 |
| Other | Power supply power | KVA | 7.5 |
| Other | Machine weight | kg | 3500 |
| Other | Machine Size | mm | 2400(2700)X1600X2100 |

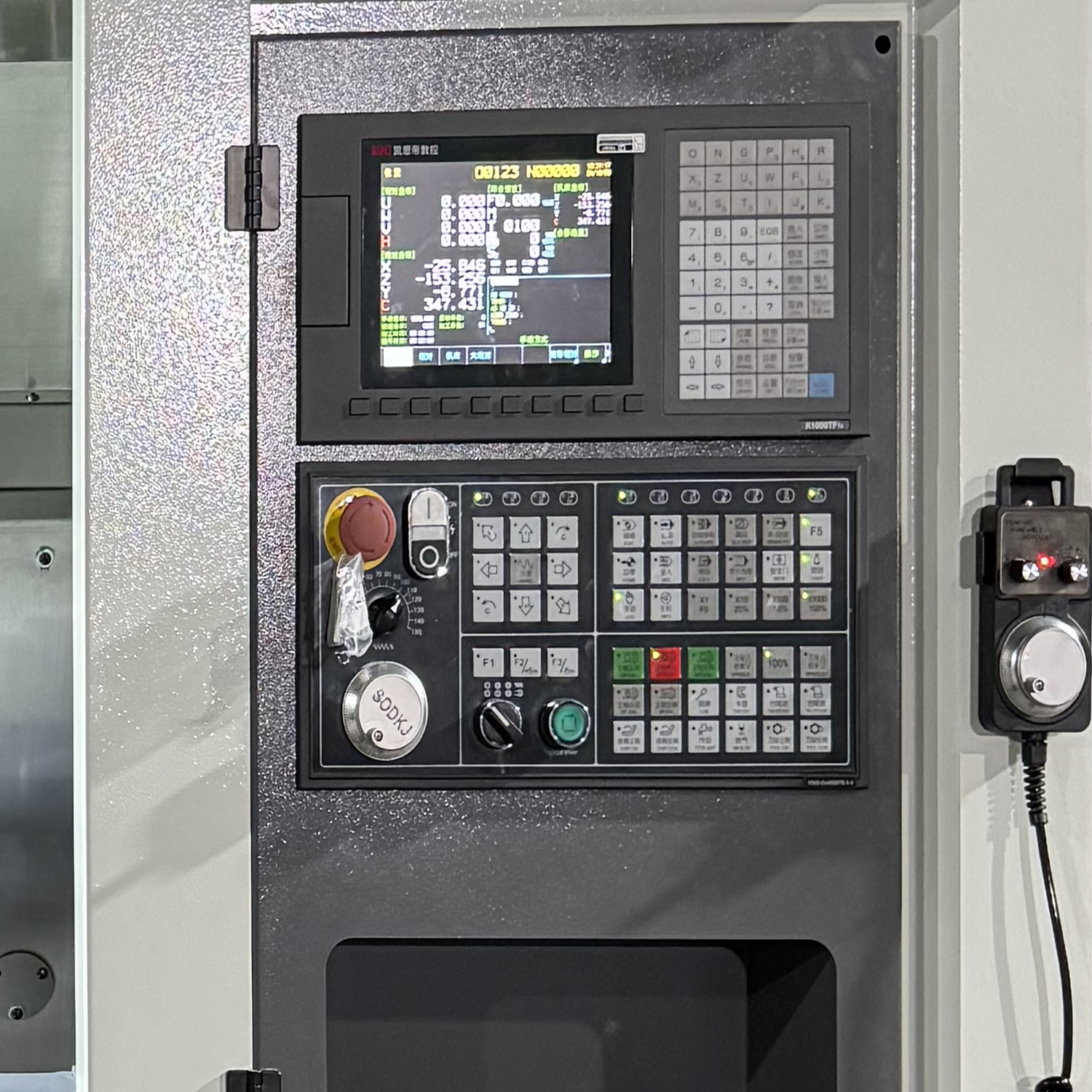

The machine is equipped with a Syntec CNC control system, a high-performance and user-friendly numerical control unit known for its precision and reliability. This system supports advanced programming, multi-axis interpolation, and real-time monitoring.

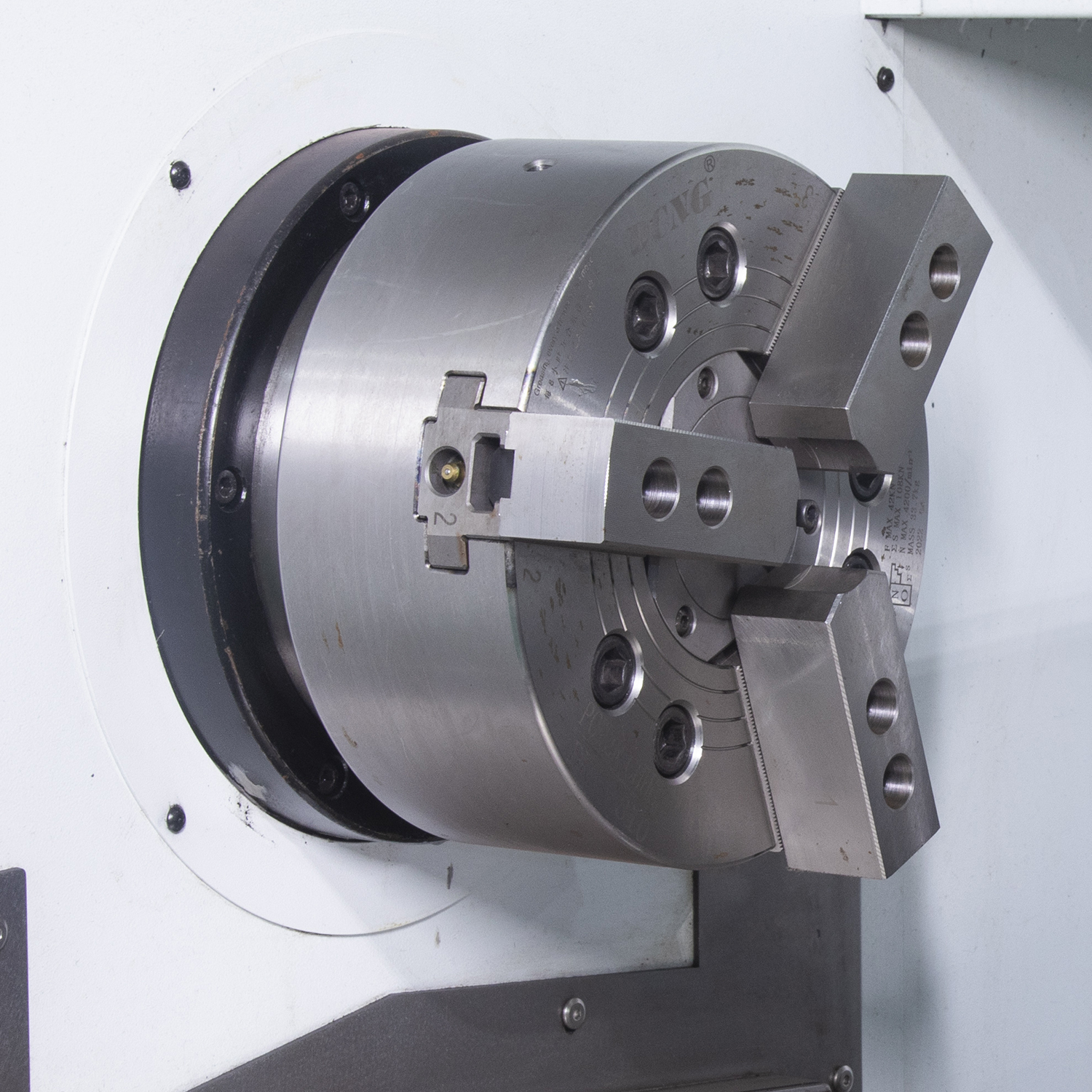

The machine incorporates a hydraulic clamping system for secure workpiece holding, utilizing a collet chuck for high gripping force and concentricity. The hydraulic mechanism ensures fast and consistent clamping, reducing setup time and improving productivity.

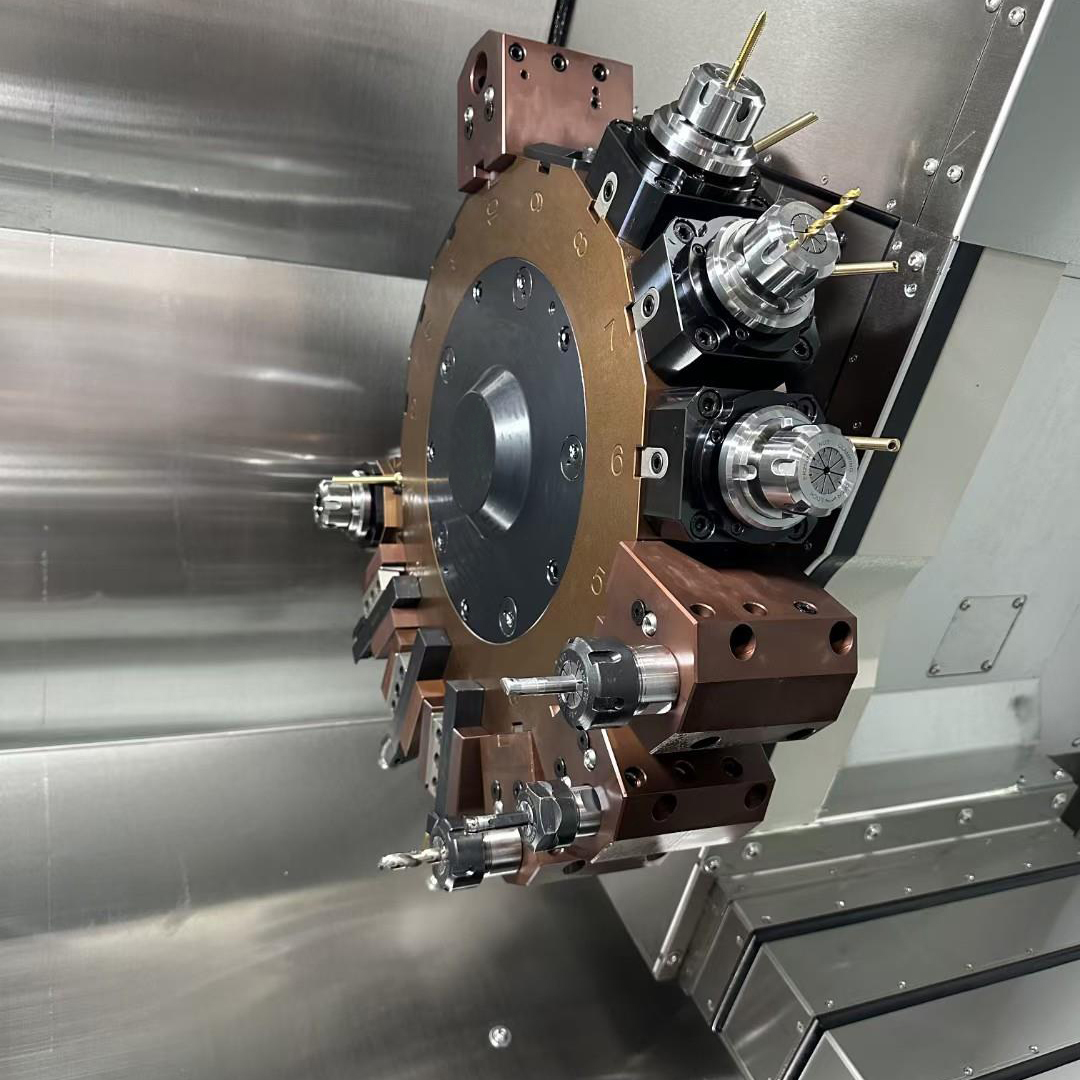

A 12-station power tool turret is installed, enabling automatic tool changes for increased efficiency in multi-operation machining. Each station can hold various cutting tools, allowing complex parts to be completed in a single setup.
The machine employs precision ball screw leads for high-accuracy motion transmission in the X, Y, and Z axes, ensuring minimal backlash and smooth movement. Combined with linear guide rails, this setup delivers superior rigidity, reduced friction, and long-term wear resistance.
An electric spindle is integrated into the machine, providing direct-drive power for high-speed cutting operations. Unlike belt-driven spindles, the electric spindle offers faster acceleration, higher RPM, and better thermal stability.

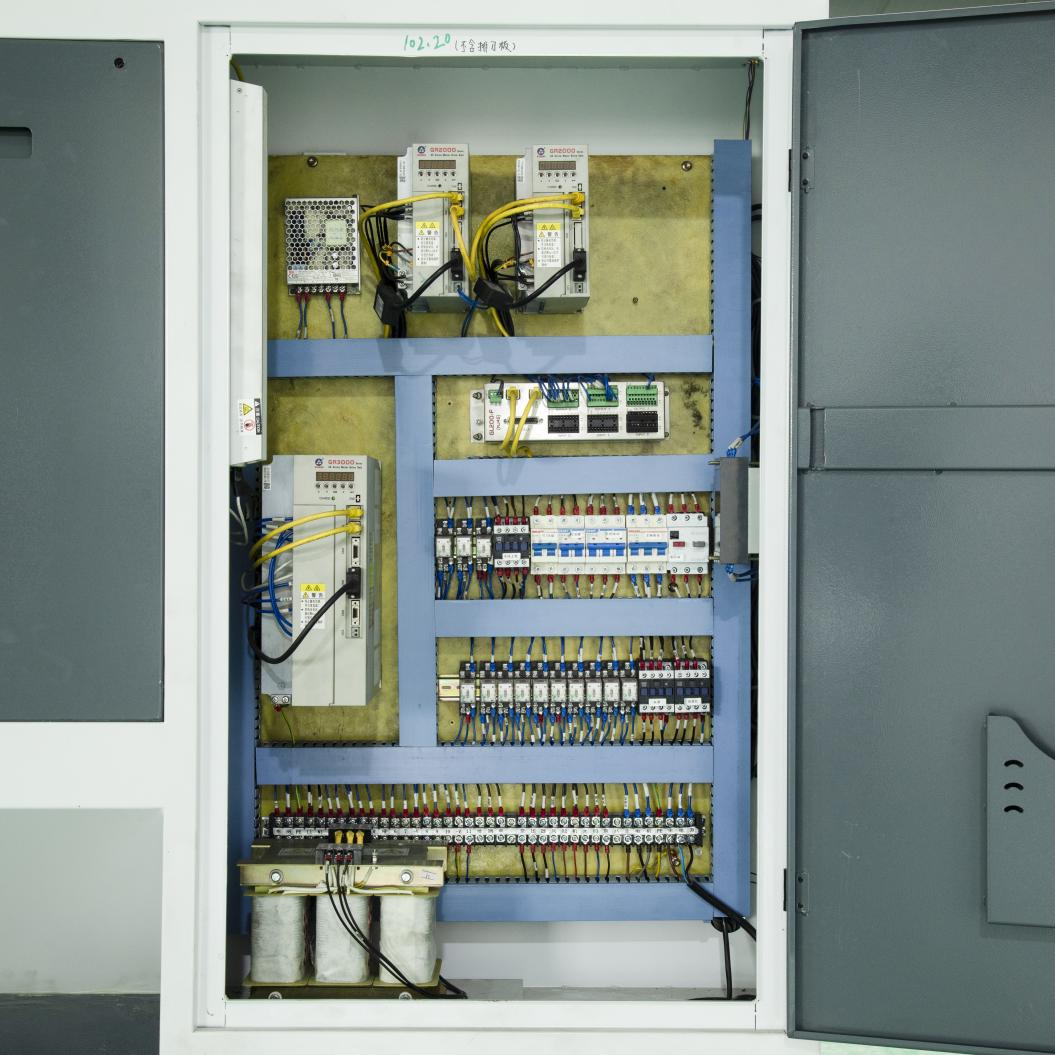

The machine features a separated electrical cabinet, isolating sensitive control components from heat, dust, and vibrations generated during machining. This design improves system reliability and extends the lifespan of electrical parts.
