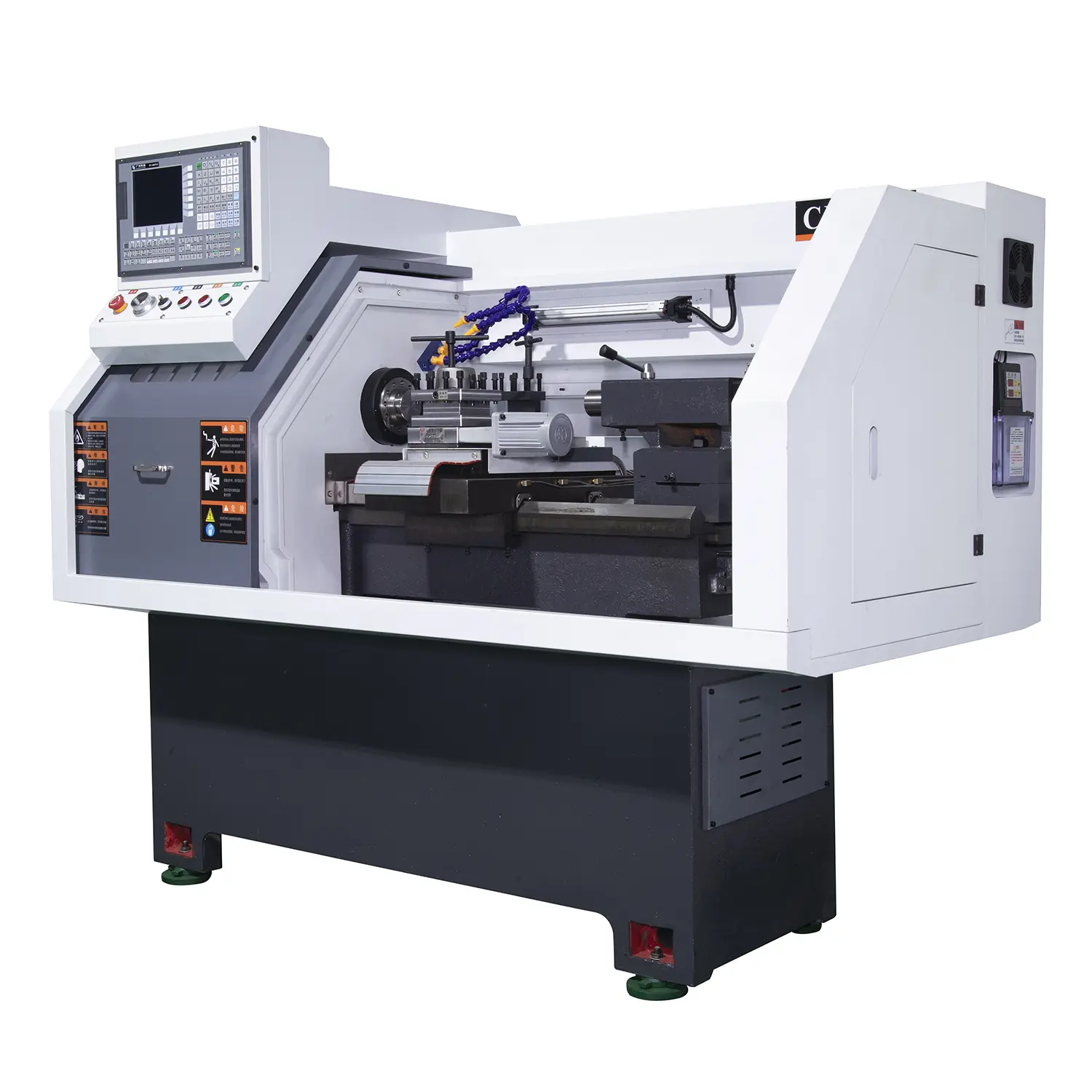

High-Quality Small CNC Lathe Machine With Tailstock Manufacturer, Supplier
High-Quality Small CNC Lathe Machine With Tailstock Manufacturer, Supplier
High-Quality Small CNC Lathe Machine With Tailstock Manufacturer, Supplier
1 / 3
High-Quality Small CNC Lathe Machine With Tailstock Manufacturer, Supplier
High-Quality Small CNC Lathe Machine With Tailstock Manufacturer, Supplier
High-Quality Small CNC Lathe Machine With Tailstock Manufacturer, Supplier

High-Quality Small CNC Lathe Machine With Tailstock Manufacturer, Supplier

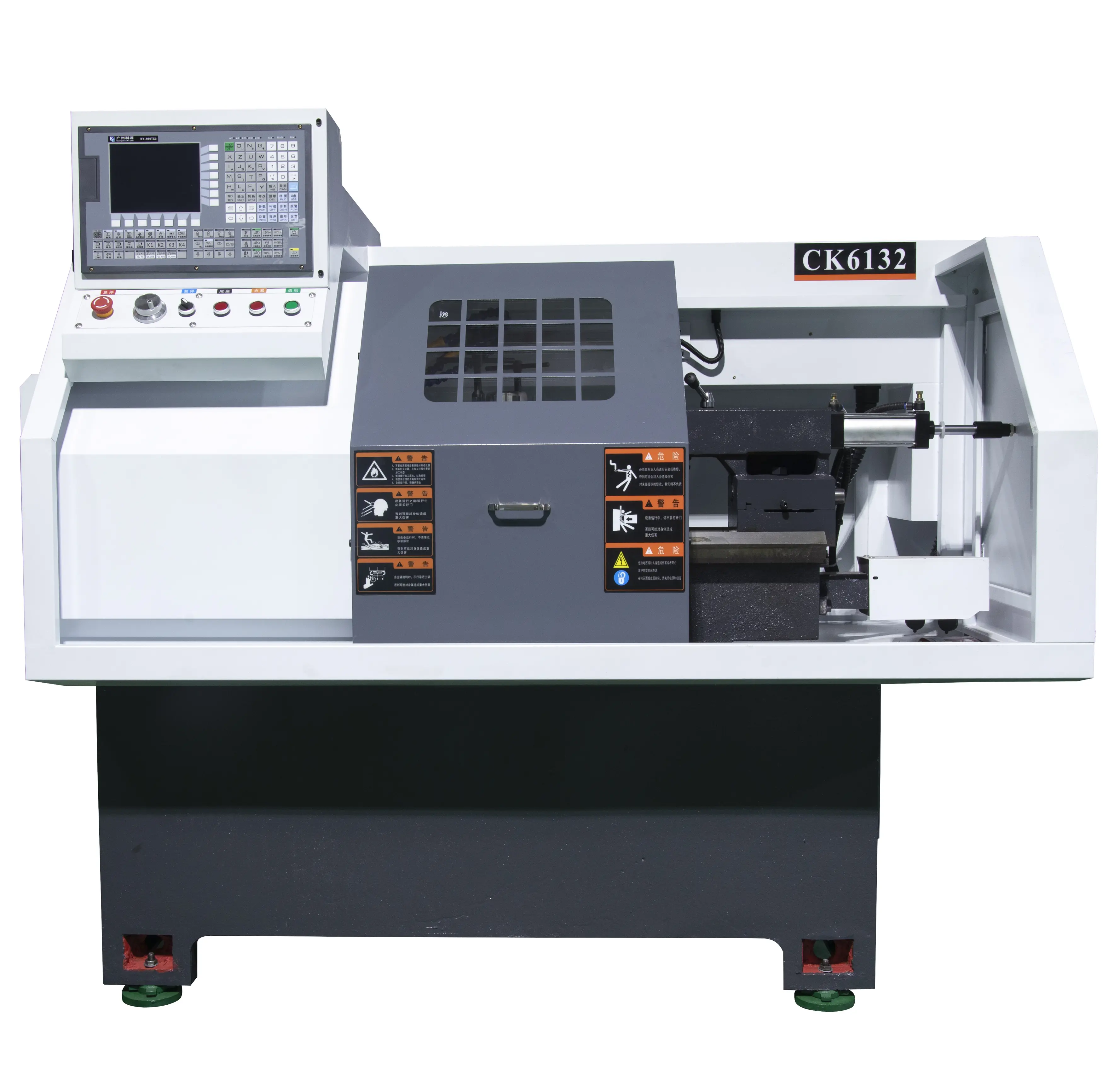

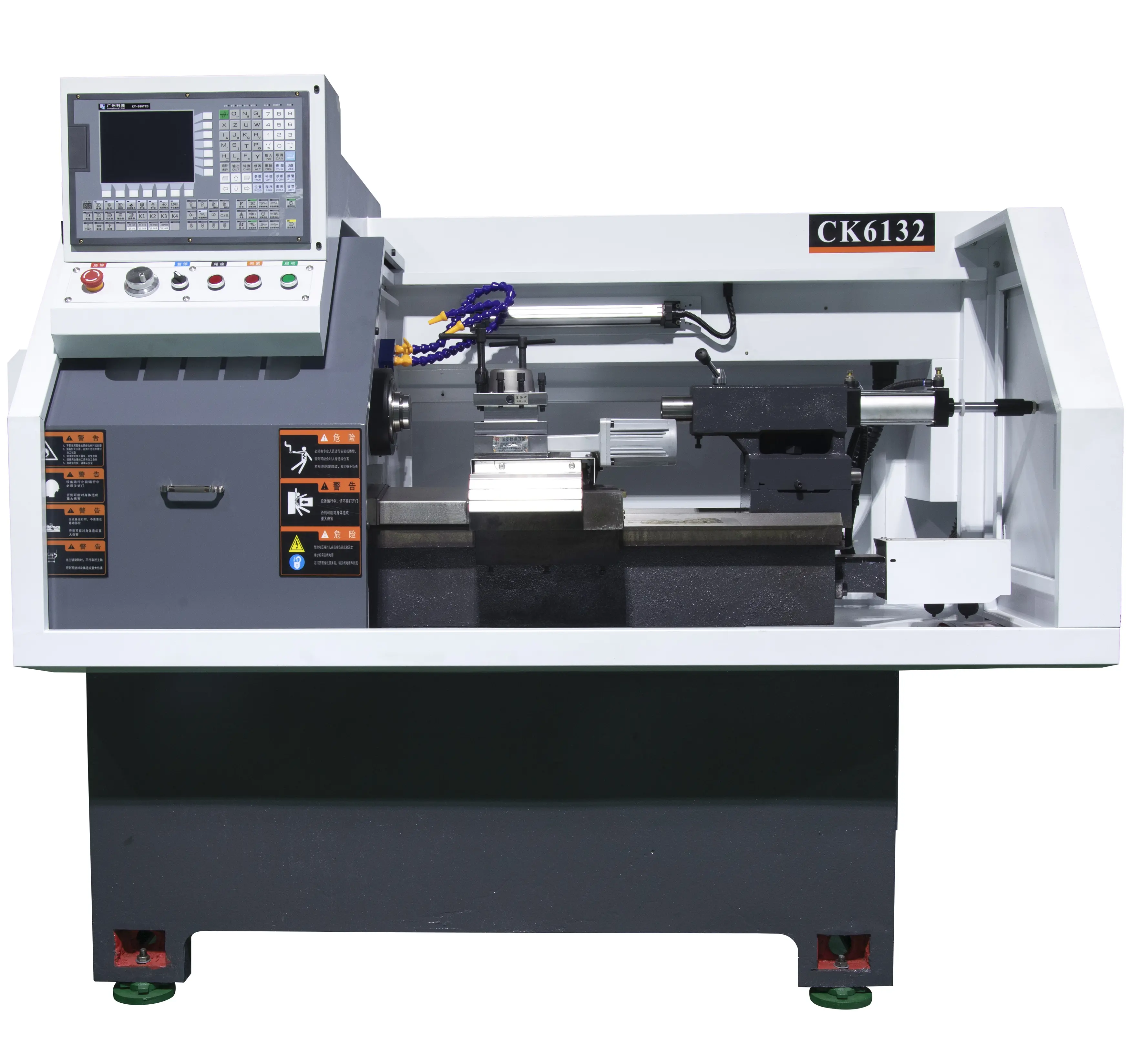

CK6130, CK6132, The small CNC lathes with tailstocks have a longer Z axis, which expands the travel in the Z axis direction. This design improvement usually has the following characteristics: Enhanced Stability, Improved Processing Accuracy, Easy Adjustment, Increased Rigidity, Easy to Operate.

Send Inquiry

Product Description

Products Video
Technology Parameter
Parameter SPECIFICATIONS Units CK6130 CK6132
Machining Capacity Maximum turning diameter over bed mm 300 300
Maximum turning diameter over turret mm 160 160
Maximum machining length mm 400 450
Maximum bar machining diameter mm 40 40
Diameter of spindle bore mm 48 48
Maximum stroke of X/Z mm 540/400 700/450
Power System Spindle maximum spindle speed r/min 3000 3000
Spindle Motor KW 3.7 4
X/Z drive motor N/M 3/4 4/4
Tool Post Height of rectangular tool shank section mm 20 20
Tailstock Tailstock travel mm 400 450
Sleeve diameter mm 55 55
Sleeve taper - MT 4 MT 4
Sleeve travel mm 100 100
Precision Repeat Positioning accuracy mm 0.01 0.01
Machining accuracy mm 0.01 0.01
Spindle beat mm 0.01 0.01
Other Cutting fluid pump motor kw 0.4 0.4
Power supply power KVA 7.5 7.5
Machine weight kg 900 1100
Machine Size mm 1900x1200x1600 2000x1200x1600
Product Description
product description 01
product description 02
Enhanced Stability: The CNC lathe is designed with a robust and stable construction, ensuring that it maintains precise positioning and operation even under the rigorous demands of high-speed cutting.
Improved Processing Accuracy: The lathe incorporates state-of-the-art control systems and precision components to achieve exceptional accuracy in processing.
Easy Adjustment: The design of the CNC lathe facilitates quick and straightforward adjustment for various cutting operations.
Increased Rigidity: Rigidity is a key factor in maintaining the precision and efficiency of a CNC lathe. The lathe's structure is fortified to maximize rigidity.
Easy to Operate: The CNC lathe is equipped with an intuitive operator interface that simplifies the entire operation process, with automated features and safety systems.
FAQ
1. What materials can this CNC lathe process?
This machine is capable of processing a wide range of metals, including steel, aluminum, brass, and other alloys, providing versatility for various manufacturing needs.
2. Is the operation system user-friendly for beginners?
Yes, the lathe features an intuitive interface with conversational programming, making it accessible for operators to learn and manage daily tasks efficiently.
3. How does the machine ensure processing accuracy?
It utilizes high-resolution feedback mechanisms and thermal expansion compensation technology to maintain strict dimensional tolerances during the machining process.
4. What is the advantage of the reinforced structure?
The reinforced bed and linear guides maximize structural rigidity, effectively absorbing cutting forces and reducing vibrations for a higher-quality finish.
5. Does this model require frequent maintenance?
Due to its robust construction and high-quality components, the machine is designed for durability; routine maintenance as per the manual will ensure long-term, stable performance.
