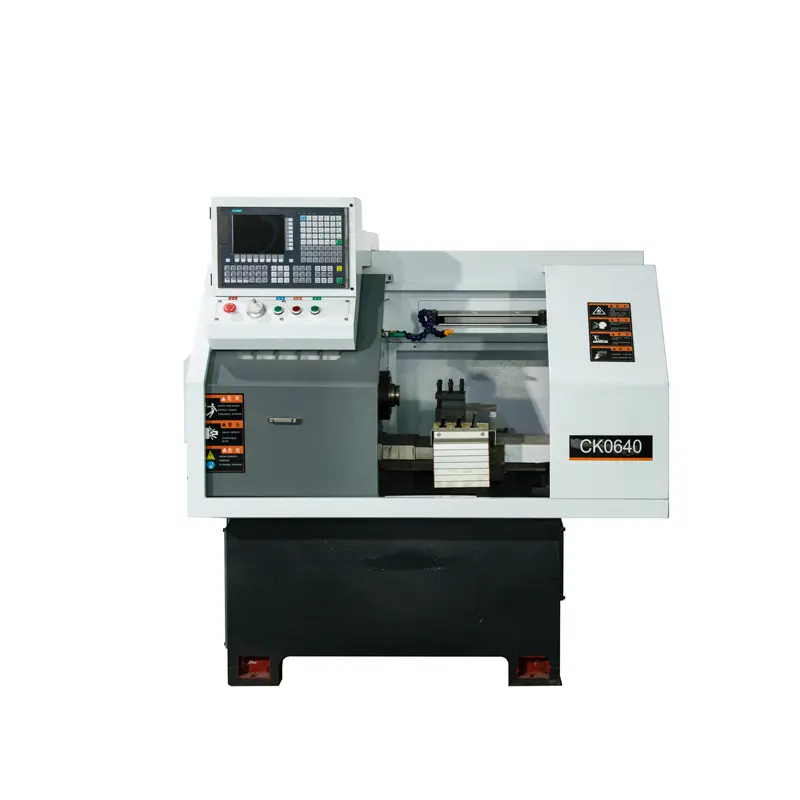

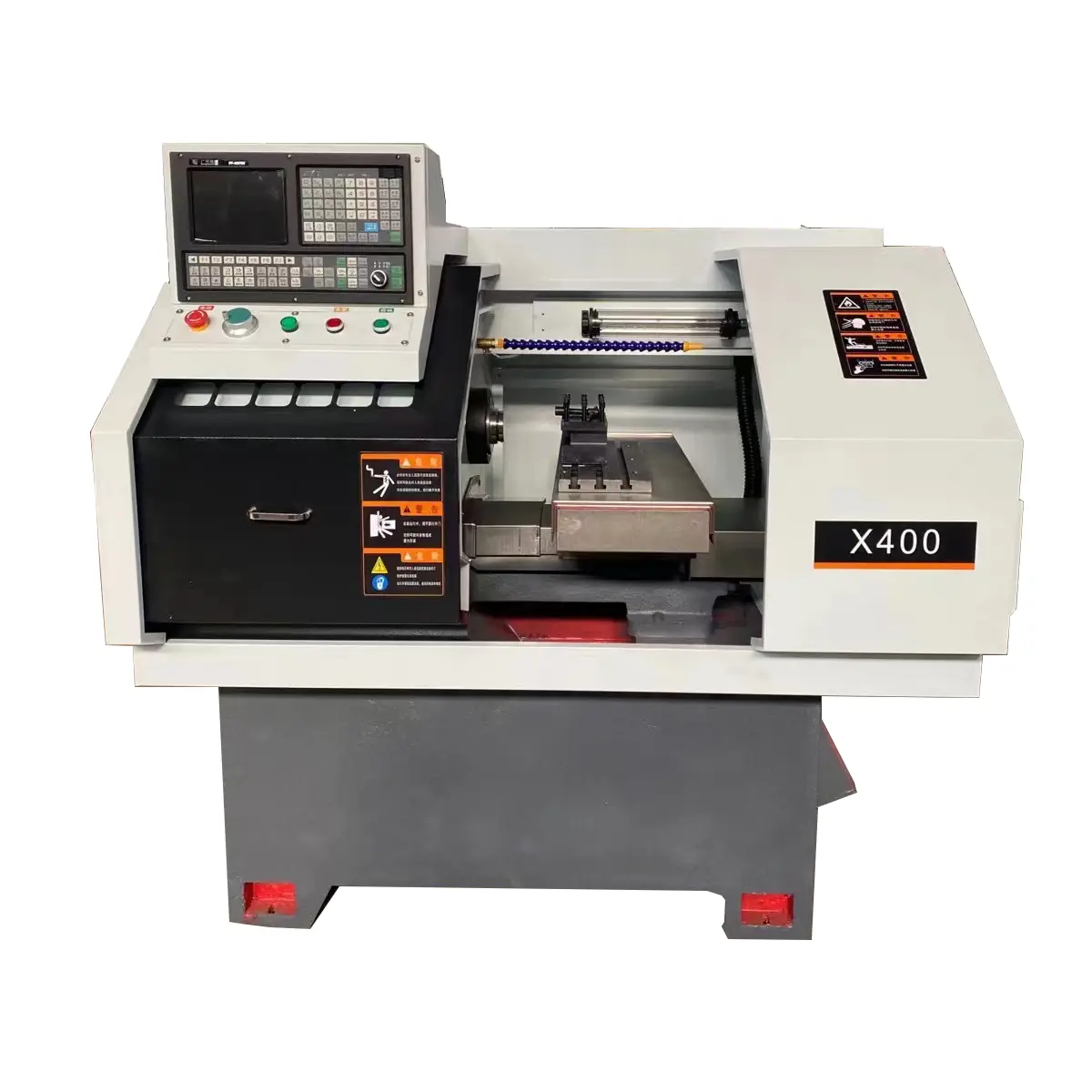

Custom Small High Precision CNC Lathe Machinewith Flat Bed Manufacturer, Factories

MACHINE TOOL FEATURES
This kind of lathe is a small horizontal bed CNC lathe machine, it is a cost-effective machine. It adopts an integral high-strength cast iron bed, which can effectively eliminate internal stress after aging treatment, ensuring the stability of the bed, compact structure and small footprint. The guide rail has high hardness and good wear resistance, can withstand large cutting forces, and ensure that the cutting accuracy can be maintained after long-term use. The semi-enclosed or fully enclosed protection can effectively prevent cutting and coolant splashing, ensuring safe operation and a clean working environment. It is suitable for processing small and medium-sized parts made of cast iron, steel, alloy and other materials.

Product Description

VIDEO

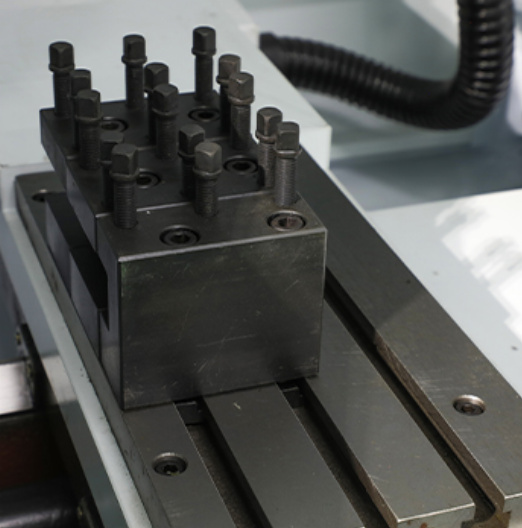

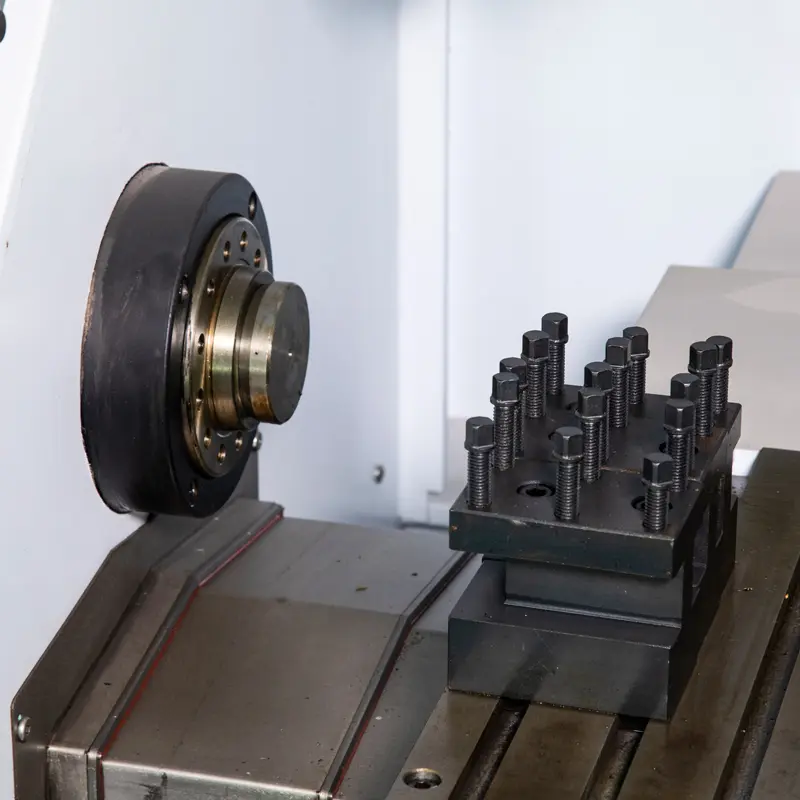

TOOL POST/TURRET

Standard with row tool post, Optional: 4 station electric tool post, others double check

Tool Post

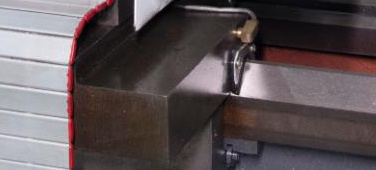

HORIZONTAL HARD GUIDE RAIL

Designed for high stability and smooth movement during heavy-duty cutting operations.

Horizontal Hard Guide Rail

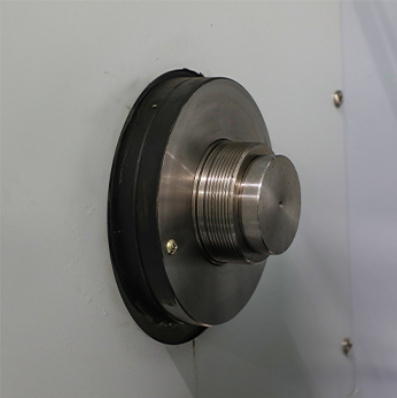

PRECISION CHUCK

Standard with pneumatic clamping, Optional: manual chuck, hydraulic chuck or collet

Precision Chuck

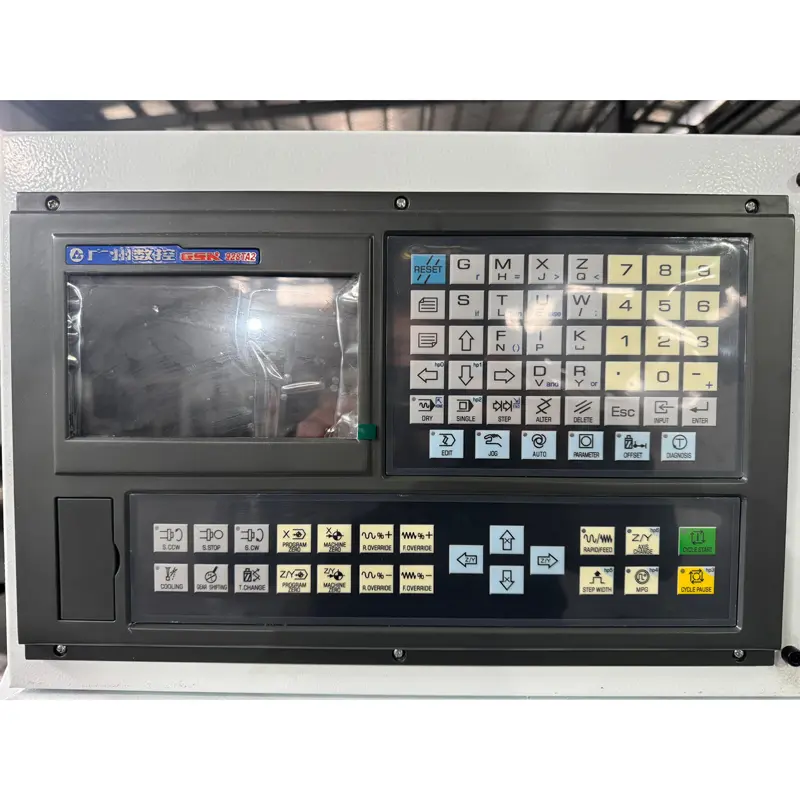

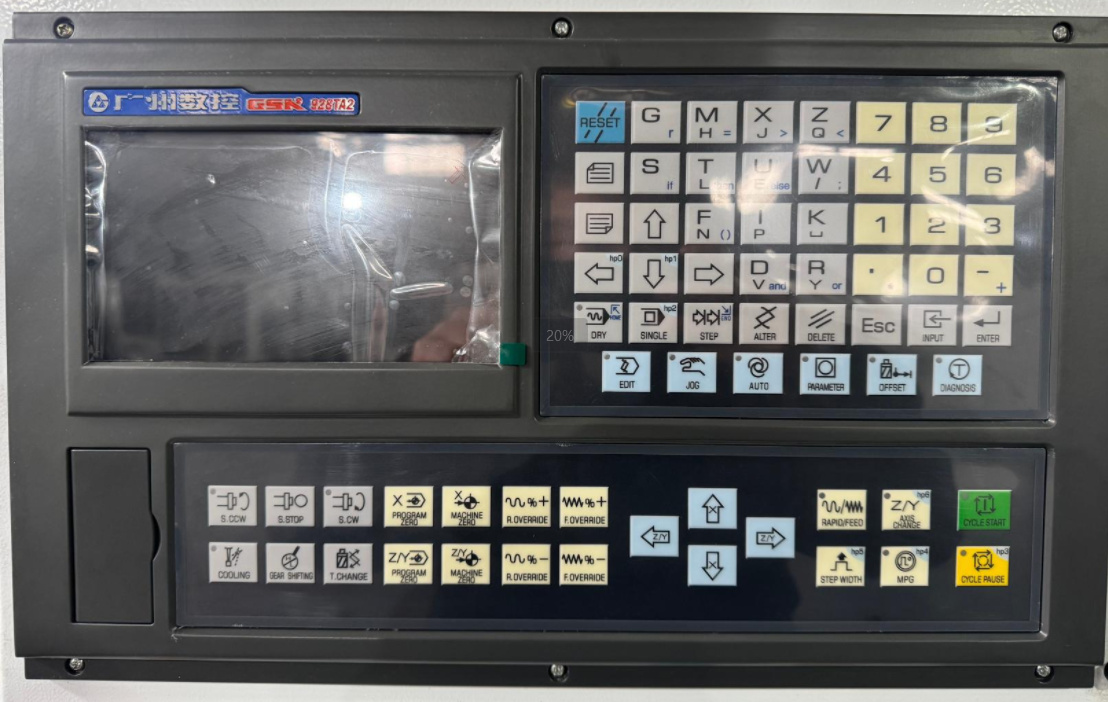

CNC CONTROL SYSTEM

Standard:GSK928TA2, Optional: double check for specific requirements.

CNC Control System

TECHNICAL SPECIFICATIONS

Parameter Specifications Units CK0632 CK0640
Machining Capacity Maximum turning diameter over bed mm 250 300
Maximum turning diameter over turret mm 32 160
Maximum machining length mm 100 150
Maximum bar machining diameter mm 32 40
Diameter of spindle bore mm 40 48
Maximum stroke of X/Z mm 520/260 560/330
Power System Spindle maximum spindle speed r/min 3000 3000
Spindle Motor kw 3 4
Spindle Transducer kw 4 4
X/Z drive motor n/m 4/4 4/4
Tool Post Height of rectangular tool shank mm 25 25
Precision Repeat Positioning accuracy mm 0.01 0.01
Machining accuracy mm <0.01 <0.01
Spindle beat mm <0.01 <0.01
Other Hydraulic pump motor kw 0.75 0.75
Cutting fluid pump motor kw 0.4 0.4
Power supply power kva 7.5 7.5
Machine weight kg 750 850
Machine Size mm 1400x1000x1600 1600x1100x1600

Frequently Asked Questions

Q: What is the machining accuracy of this CNC lathe? A: The machine offers high precision with a machining accuracy of less than 0.01mm.
Q: What control systems are compatible? A: The machine comes standard with the GSK928TA2 control system; other options can be verified upon request.
Q: Can I upgrade the tool post? A: Yes, the machine is standard with a row tool post, but you can optionally choose a 4-station electric tool post.
Q: What are the clamping options available? A: We offer pneumatic clamping as standard, with options for manual chucks, hydraulic chucks, or collets.
Q: What is the maximum spindle speed? A: The maximum spindle speed is 3000 r/min for both CK0632 and CK0640 models.
